Microstructure (Typical)
High Chrome Cast Grinding BallsFor Cement Mills, Ball Mills & Abrasive Ore Grinding
High chromium grinding balls for fine grinding and abrasive ore conditions where outstanding wear resistance is the main concern.
Exceptional Wear ResistanceHigh chromium carbide matrix
High HardnessHRC 58-66 for excellent durability
Cost EfficientLower wear rate and cost per ton
Consistent QualityStrict process and heat-treatment control
Product Overview
High chrome cast grinding balls use a hard chromium carbide matrix to resist abrasive wear. Alloy selection and heat treatment are adjusted to the mill impact level and target service life.
Material grade, heat treatment and final specification are matched to the mill condition and verified by batch inspection.
Available Size Range17-130 mmOther sizes available on request
Product Specification
| Diameter | 17-130 mm |
|---|---|
| Hardness | 58-66 HRC |
| Chrome content | 10-30% |
| Microstructure | Chromium carbide matrix |
| Packaging | Steel drums or bulk bags |
| Material | 10-30% chromium |
|---|---|
| Best use | Abrasive ores |
| Inspection | Chemistry, hardness and dimensions |
| Documentation | Batch report and packing list |
| Customization | Available by operating condition |
High Chrome Grades (Typical)
| Type | Chrome Content | Typical Hardness | Application |
|---|---|---|---|
| High Chrome 10 | 10%–12% | 58–62 HRC | Cement mill / fine grinding |
| High Chrome 15 | 15%–18% | 60–64 HRC | Abrasive ore / ball mill |
| High Chrome 20+ | 20%–30% | 62–66 HRC | Severe abrasive conditions |
Technical Performance & Quality Control
Wear Rate Comparison (Typical)
2.0%High Chrome Grinding Ball
2.9%Low Chrome Grinding Ball
- Higher wear resistance
- Longer service life
- More stable performance
- Lower cost per ton milled
Product Advantages
Exceptional Wear ResistanceHigh chromium carbide matrix
High HardnessHRC 58-66 for excellent durability
Cost EfficientLower wear rate and cost per ton
Consistent QualityStrict process and heat-treatment control
Applications / Where Used

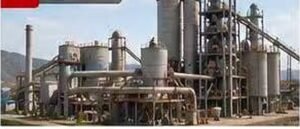

- Cement finish mills
- Abrasive mineral grinding
- Copper and gold regrind
- Industrial fine grinding
Standard Size Range & Technical Data
| Diameter | Chrome Content | Hardness | Wear Rate | Breakage Rate | Application |
|---|---|---|---|---|---|
| 17-25 mm | 10-15% | 58-64 HRC | ≤ 2.0% | ≤ 2.5% | Fine grinding |
| 25-40 mm | 10-18% | 58-64 HRC | ≤ 2.0% | ≤ 2.5% | Cement mill |
| 40-60 mm | 15-20% | 60-64 HRC | ≤ 2.0% | ≤ 2.5% | Secondary ball mill |
| 60-90 mm | 15-25% | 60-66 HRC | ≤ 2.0% | ≤ 2.5% | Abrasive ore |
| 90-130 mm | 20-30% | 60-66 HRC | ≤ 2.0% | ≤ 2.5% | Large ball mill |
Other sizes and specifications are available upon request.
Quality Assurance
Chemical CompositionRaw material and alloy verified
Hardness TestBatch hardness controlled
Dimensional InspectionSize and geometry verified
Impact & Drop TestPerformance verified
Frequently Asked Questions
The standard range is 17-130 mm. Additional sizes can be reviewed against your mill dimensions and operating data.
Raw material, alloy chemistry, heat treatment, hardness and dimensions are controlled and recorded by batch.
Selection is based on mill type, feed size, ore hardness, impact level, current consumption and target cost per ton.
Yes. Size, hardness, material grade, packaging and other parameters can be adjusted after technical review.
Export options include steel drums, bulk bags or strapped bundles depending on product type and destination.
Batch chemistry, hardness, dimensions, impact testing and available third-party reports can be supplied with the order.
