Grinding Cylpebs (Properly Controlled)
- Uniform size and weight
- Higher packing density
- Improved grinding efficiency
- Lower wear rate
- Stable mill operation

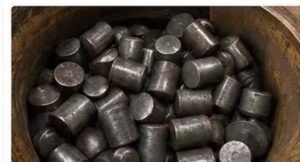

Grinding CylpebsFor Ball Mills
High hardness, good toughness and controlled wear performance for fine grinding applications.
High HardnessStable HRC 58-63 wear resistance
Uniform SizeControlled dimensions and weight
Stable PerformanceImproved fine-grinding efficiency
Support CustomizationMultiple sizes and hardness options
Product Overview
Grinding cylpebs provide a larger contact area and dense media charge for fine grinding. Size, alloy and hardness can be selected for cement, mineral and industrial applications.
Material grade, heat treatment and final specification are matched to the mill condition and verified by batch inspection.
Available Size Range8-35 mmOther sizes available on request
Product Specification
| Diameter | 8-35 mm |
|---|---|
| Length | 10-45 mm |
| Hardness | 58-63 HRC |
| Chrome content | 10-25% |
| Packaging | Steel drums or bulk bags |
| Material | High carbon alloy steel |
|---|---|
| Best use | Fine grinding |
| Inspection | Chemistry, hardness and dimensions |
| Documentation | Batch report and packing list |
| Customization | Available by operating condition |
Technical Performance & Quality Control
Shape & Packing Comparison
Ordinary Steel Balls or Uneven Media
- Uneven size distribution
- Lower packing density
- Lower grinding efficiency
- Coarse particle distribution
- Unstable mill operation
Application Notes
Product Advantages
High HardnessStable HRC 58-63 wear resistance
Uniform SizeControlled dimensions and weight
Stable PerformanceImproved fine-grinding efficiency
Support CustomizationMultiple sizes and hardness options
Standard Size Range & Technical Data
| Diameter / Size | Length / Height | Weight | Hardness | Wear Rate | Application |
|---|---|---|---|---|---|
| 8×10 mm | 10 mm | 0.010 kg/pc | 58-63 HRC | ≤ 1.0% | Fine grinding |
| 10×12 mm | 12 mm | 0.018 kg/pc | 58-63 HRC | ≤ 1.0% | Fine grinding |
| 12×15 mm | 15 mm | 0.032 kg/pc | 58-63 HRC | ≤ 1.0% | Fine grinding |
| 16×20 mm | 20 mm | 0.055 kg/pc | 58-63 HRC | ≤ 1.0% | Ball mill |
| 20×25 mm | 25 mm | 0.120 kg/pc | 58-63 HRC | ≤ 1.0% | Ball mill |
| 25-35 mm | 25-35 mm | 0.190-0.330 kg/pc | 58-63 HRC | ≤ 1.0% | Mineral grinding |
Other sizes and specifications are available upon request.
Quality Assurance
Chemical CompositionRaw material and alloy verified
Hardness TestBatch hardness controlled
Dimensional InspectionSize and geometry verified
Straightness / ShapePerformance verified
Third-Party ReportsSGS or BV available
