Our Grinding Rods
- Strict straightness control
- Smooth movement in rod mill
- Lower rod breakage risk
- Stable grinding performance
- Longer service life

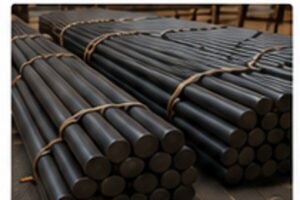

Grinding RodsFor Rod Mills
High carbon steel grinding rods with excellent straightness, high toughness and wear resistance for stable rod mill performance and lower operating cost.
High HardnessWear resistance for longer service life
Good ToughnessResists breaking under bending stress
Strict Quality ControlFrom raw material to finished product
Support CustomizationCustom diameter, length and hardness
Product Overview
Grinding rods combine straightness, toughness and controlled hardness. Diameter, length and end condition are produced to fit the mill dimensions and reduce tangling during operation.
Material grade, heat treatment and final specification are matched to the mill condition and verified by batch inspection.
Available Size Range40-120 mmOther sizes available on request
Product Specification
| Diameter | 40-120 mm |
|---|---|
| Length | 2,000-6,000 mm |
| Hardness | 45-55 HRC |
| Straightness | ≤3 mm/m |
| Packaging | Bundled for export |
| Material | High carbon alloy steel |
|---|---|
| Best use | Rod mills |
| Inspection | Chemistry, hardness and dimensions |
| Documentation | Batch report and packing list |
| Customization | Available by operating condition |
Technical Performance & Quality Control
Straightness Comparison
Rods Without Proper Control
- High straightness deviation
- Easy to bend and vibrate
- Higher breakage rate
- Affects mill efficiency
- Shorter service life
Application Notes
Product Advantages
High HardnessWear resistance for longer service life
Good ToughnessResists breaking under bending stress
Strict Quality ControlFrom raw material to finished product
Support CustomizationCustom diameter, length and hardness
Standard Size Range & Technical Data
| Diameter | Length | Weight | Hardness | Straightness | Application |
|---|---|---|---|---|---|
| 40 mm | 2,000-6,000 mm | 2.0-2.9 kg/m | 45-55 HRC | ≤ 3.0 mm/m | Rod mill |
| 50 mm | 2,000-6,000 mm | 3.1-4.7 kg/m | 45-55 HRC | ≤ 3.0 mm/m | Rod mill |
| 60-70 mm | 2,000-6,000 mm | 4.5-7.1 kg/m | 45-55 HRC | ≤ 3.0 mm/m | Rod mill |
| 80-90 mm | 2,000-6,000 mm | 8.0-12.1 kg/m | 45-55 HRC | ≤ 3.0 mm/m | Rod mill |
| 100-110 mm | 2,000-6,000 mm | 12.3-18.5 kg/m | 45-55 HRC | ≤ 3.0 mm/m | Rod mill |
| 120 mm | 2,000-6,000 mm | 17.7-20.9 kg/m | 45-55 HRC | ≤ 3.0 mm/m | Rod mill |
Other sizes and specifications are available upon request.
Quality Assurance
Chemical CompositionRaw material and alloy verified
Hardness TestBatch hardness controlled
Dimensional InspectionSize and geometry verified
Straightness / ShapePerformance verified
Third-Party ReportsSGS or BV available
